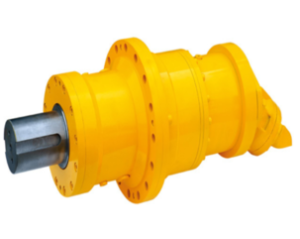

YLM Series YLM series with factory price YLM1-63 YLM100-6300 YLM160-16000

model Displacement(ml/r) preset pressure(Mpa) Maximum pressure(Mpa) Rated torque Unit torque(N.m/MPa) range of rotation(r/min) weight(Kg)
（N.M）
YLM1-63 64 25 32 225 9 15～1500 20
YLM1-80 78 25 32 300 12 15～1250
YLM1-100 96 25 32 350 14 15～1000
YLM1-125 126 20 25 380 19 15～1000
YLM1-160 159 20 25 472 23 15～1000
YLM2-100 113 25 32 420 18 15～1250 27
YLM2-150 159 25 32 620 25 15～1000
YLM2-175 180 20 25 526 28 15～1000
YLM2-200 206 20 25 600 32 8～800
YLM2-250 235 16 20 607 40 8～630
YLM2-280 276 16 20 670 44 8～500
YLM3-175 181 25 32 710 28 8～1000 35
YLM3-200 201 25 32 800 32 8～800
YLM3-250 254 25 32 949 40 8～630
YLM3-300 289 20 25 864 46 6～500
YLM3-350 340 20 25 1040 55 6～400
YLM3-400 380 16 20 949 63 6～400
YLM3-450 450 16 20 1054 71 6～400
YLM3-500 493 16 20 1256 79 6～400
YLM6-400 397 25 32 1483 63 5～630 57.5
YLM6-450 452 25 32 1638 72 5～630
YLM6-500 491 20 25 1463 78 5～500
YLM6-600 594 20 25 1775 94 4～500
YLM6-700 683 16 20 1633 103 4～400
YLM6-750 754 16 20 1760 110 4～320
YLM6-800 804 16 20 1884 128 4～320
YLM6-850 862 16 20 2020 137 4～320
YLM6-900 896 16 20 2097 142 4～320
YLM11-700 682 25 32 2667 114 4～400 94
YLM11-800 782 25 32 2959 120 4～400
YLM11-900 894 25 32 3480 140 4～400
YLM11-1000 981 20 25 2974 158 3～320
YLM11-1100 1104 20 25 3336 177 3～320
YLM11-1200 1234 16 20 3512 187 3～320
YLM11-1300 1301 16 20 3080 197 3～250
YLM11-1400 1401 16 20 3323 223 3～250
YLM16-1400 1413 25 32 5138 210 2～400 170
YLM16-1600 1648 20 25 6158 262 2～400
YLM16-1800 1814 20 25 5433 283 2～320
YLM16-2000 2034 16 25 6030 323 2～320
YLM16-2400 2401 16 20 5763 360 2～250
YLM31-2500 2553 25 32 9523 405 2～250 298
YLM31-2800 2683 25 32 10559 443 1～200
YLM31-3000 3063 20 25 9135 485 1～200
YLM31-3150 3218 20 25 9392 500 1～200
YLM31-3500 3462 20 25 10220 544 1～160
YLM31-4000 4152 20 25 12481 665 1～160
YLM31-5000 4828 16 20 12387 825 1～160
YLM100-6300 6765 25 32 22916 975 0.5～125 700
YLM100-8000 8298 25 32 28744 1223 0.5～125
YLM100-10000 9982 20 25 31942 1699 0.3～100
YLM100-13000 12700 20 25 37210 2022 0.3～100
YLM160-12500 13333 20 25 39460 1973 0.3～80 1000
YLM160-16000 16039 20 25 46420 2376 0.2～63
